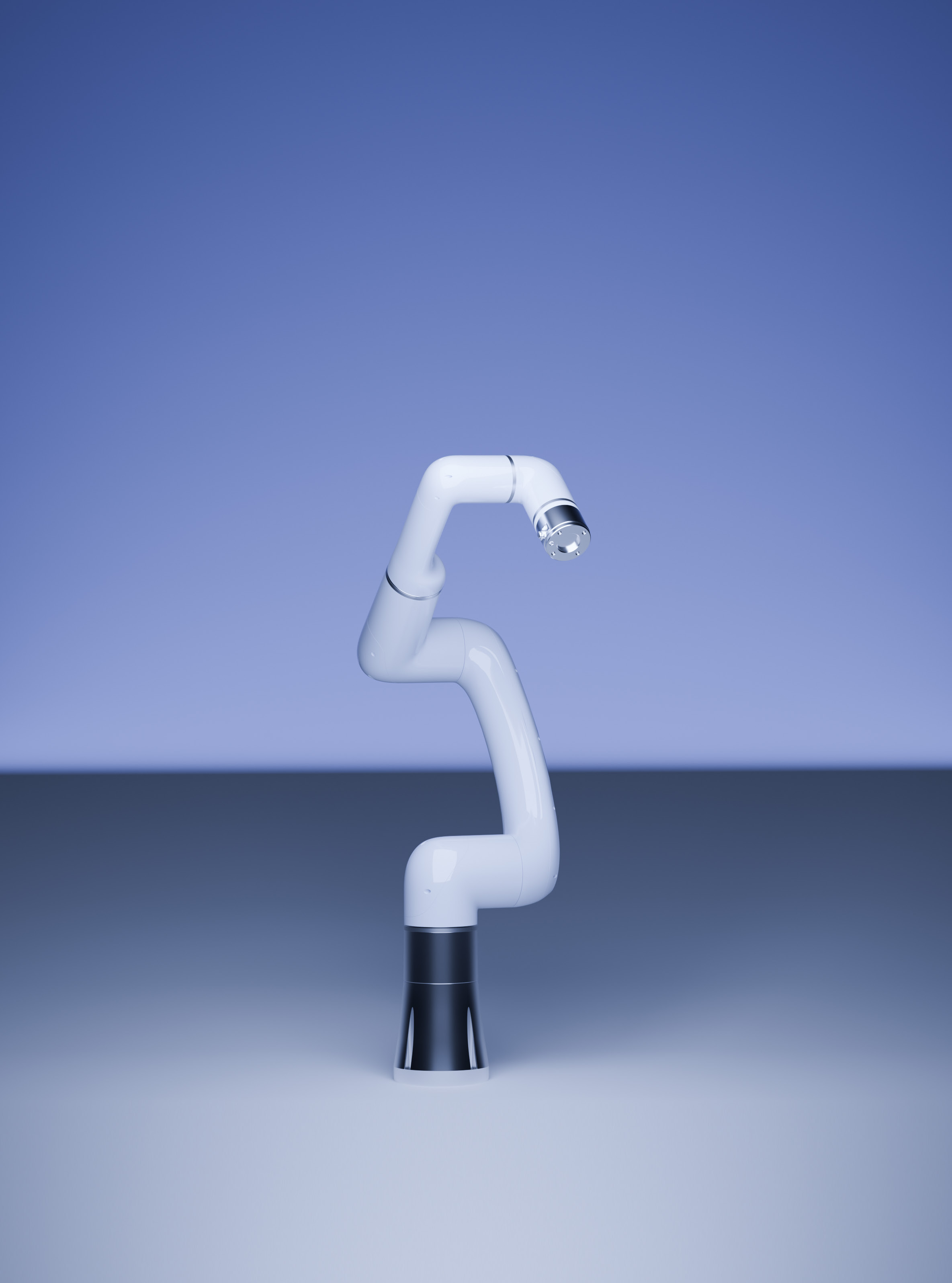

Collaborative Robotic Arm LS Series
Multimodal interaction · drag teaching · precision force control
Get Robotic Arm SolutionCollaborative Robotic Arm LS Series
The LS series collaborative robotic arm integrates multimodal instruction interaction, drag teaching and adaptive force control, with ±0.03mm repeatability and quiet operation below 70dB — serving smart retail, unmanned cafés, hotel delivery and health therapy.
Features & Specs
Product Models
- LS62: 2kg payload · 655mm reach
- LS65: 5kg payload · 850mm reach
- ERB1C600MET-Mini integrated controller
- ERP500 portable teach pendant
Specifications
- Repeatability ±0.03mm
- Max joint speed 180°/s
- ≤70dB quiet operation
- IP65 dust/water resistance
Industries Served
- Smart retail & unmanned cafés
- Hotel delivery & room service
- Health therapy & elderly care
- Exhibitions & brand interaction
Minimalist & Lightweight, Built for Commercial Services
The LS Series collaborative robots are purpose-built for commercial services and lightweight scenarios in the new consumer era. Pairing a minimalist, lightweight design with embodied intelligence, they integrate seamlessly into dining, retail, wellness and mobility services — helping SMEs and operators deploy smart services quickly, reduce costs and elevate experiences.
Six Commercial Scenarios, Flexible Deployment

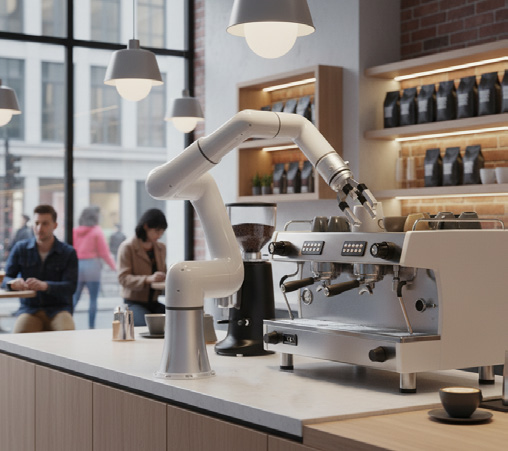

Smart Kitchen · Unmanned Food Service
Visual recognition of bottles, glassware and ingredients; force-sensing adaptive gripping; AI-optimized pouring trajectories.

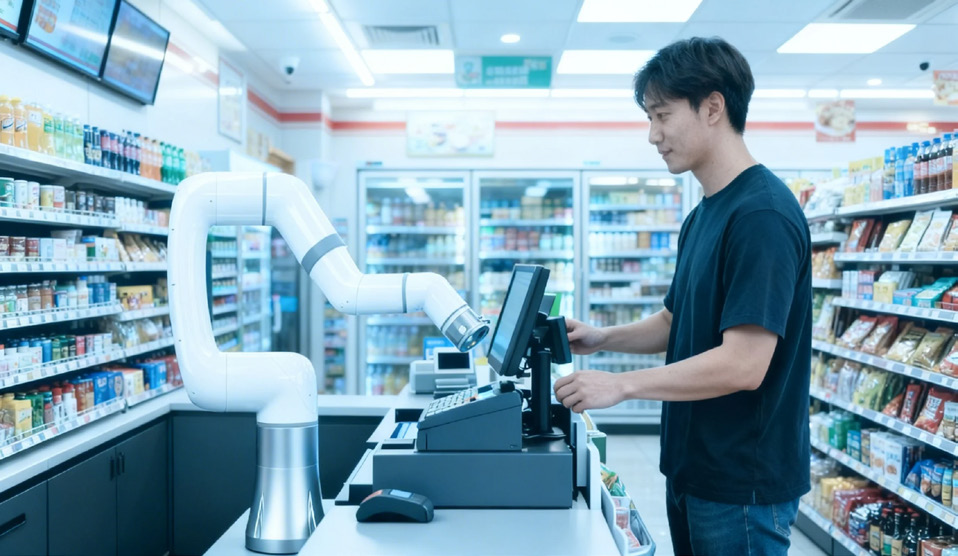

24-hour Unmanned Supermarket
Visual recognition of products and barcodes; haptic adaptive grasping; autonomous replenishment routing; silent, contactless service.

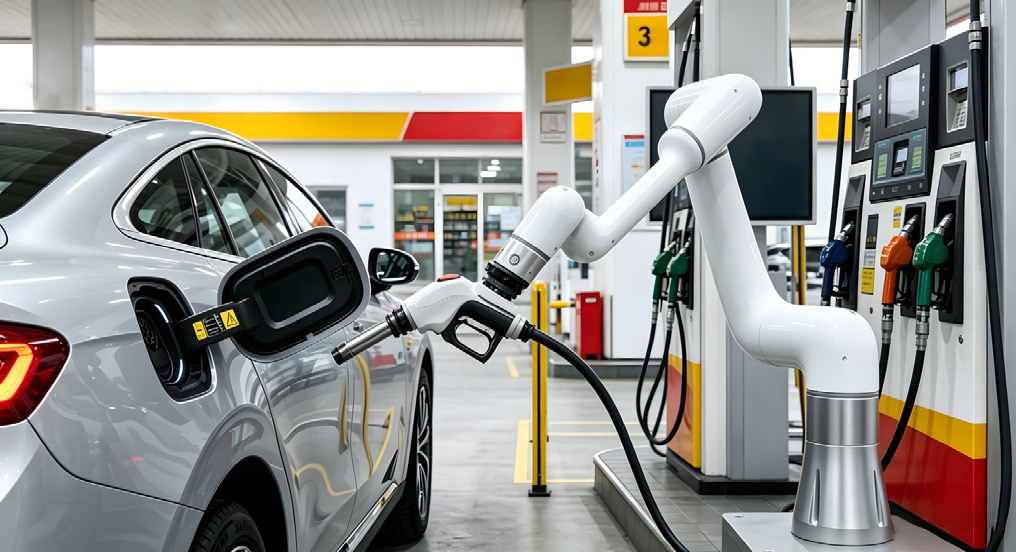

Refuel & Charge
Identifies the fuel cap or charging port position and adaptively adjusts insertion force and angle.

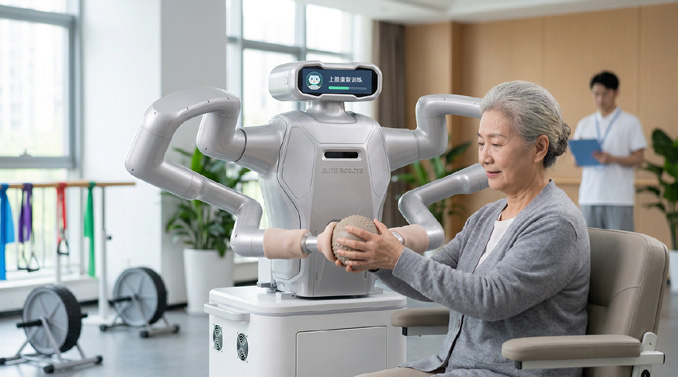

Physical Therapy & Wellness
Force and vision sensors perceive back curvature in real time, adjusting force and trajectory to simulate hand massage techniques.

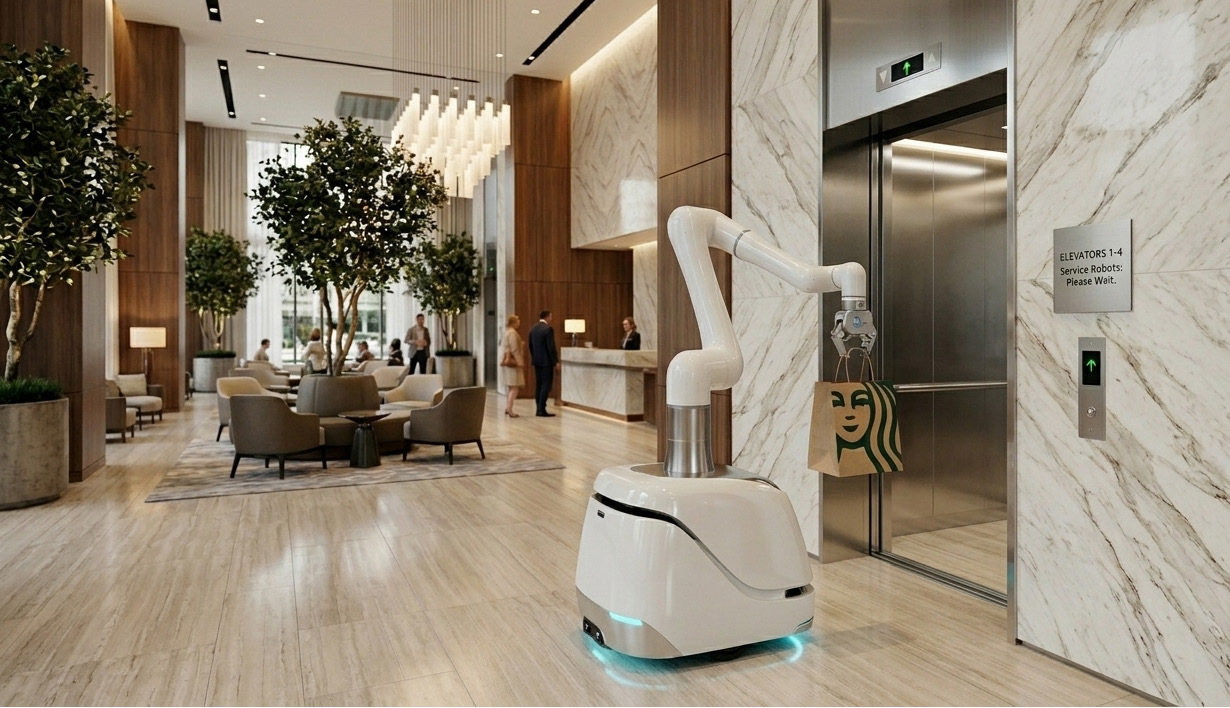

Hotel · Service for Life
Autonomous elevator navigation with obstacle avoidance; silent operation; contactless tray and room-service delivery.

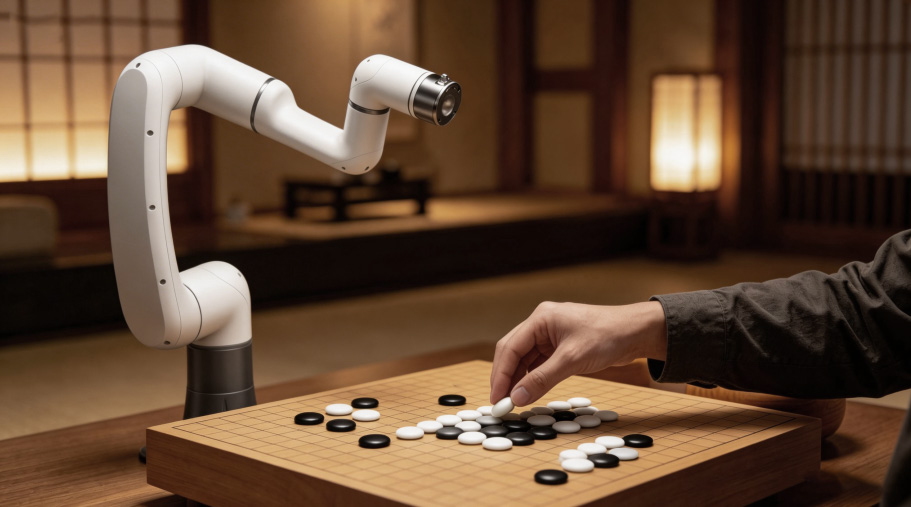

Scientific Research & Education
Pose and layout recognition, haptic feedback and adaptive force control for research, practical training and board-game instruction.
The LS Series in Real Deployment Scenarios
LS62 / LS65 Specifications
| LS62 | LS65 | |
|---|---|---|
| Model | LS62 | LS65 |
| Payload | 2 kg | 5 kg |
| Reach | 655 mm | 850 mm |
| Repeatability | ±0.03 mm | ±0.03 mm |
| Degrees of Freedom | 6 | 6 |
| Protection | IP65 | IP65 |
| Mounting | Any angle | Any angle |
| Max. Joint Speed | Up to 180°/s | Up to 180°/s |
| Base Diameter | φ126 mm | φ126 mm |
